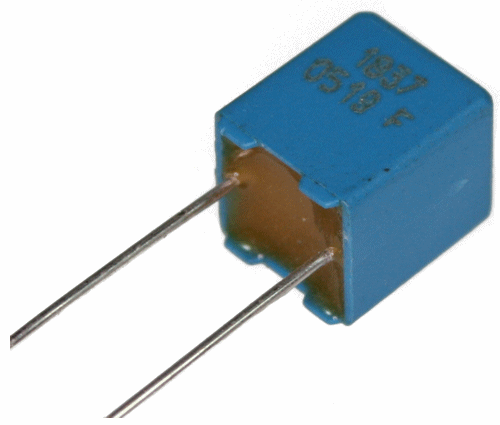

Roederstein MKP1837 0,047uF 160V

Roederstein MKP1837 0,047uF 160V

(0 reviews)

Features:

  • MKP 1837 metallized polypropylene film capacitor
  • Main applications: Oscillator, timing and LC/RC filter circuits, high frequency coupling/decoupling, sample and hold circuits.
  • Electrodes: Vacuum deposited aluminum
  • Coating: Flame retardant plastic case (UL-class 94 V-0), blue, epoxy resin sealed
  • Leads: Tinned wire
  • Reliability: Operational life > 300,000 h. Failure rate < 5 FIT (40°C and 0.5 x UR)
  • Maximum pulse rise time: dv/dt = 390 V/?s
  • Self inductance: ~ 6 nH measured with 2mm long leads
  • Dielectric absorption: 0.05% (typical value) acc. to IEC 60384-1
  • Operating temperature range: -55 - 100° celsius

    • SKU SKU 30861
    Weight 5,00 g
    360 Image 360 degrees image
    Manufacturer Roederstein Capacitors, Heinrich Roeder GmbH & Co. KG, Im Brühl 8, 59494 Soest, Deutschland, info@roederstein.de
    Our price: €4,68
    including VAT 19% , [plus shipping]
     Delivery time: 1-2 days*
